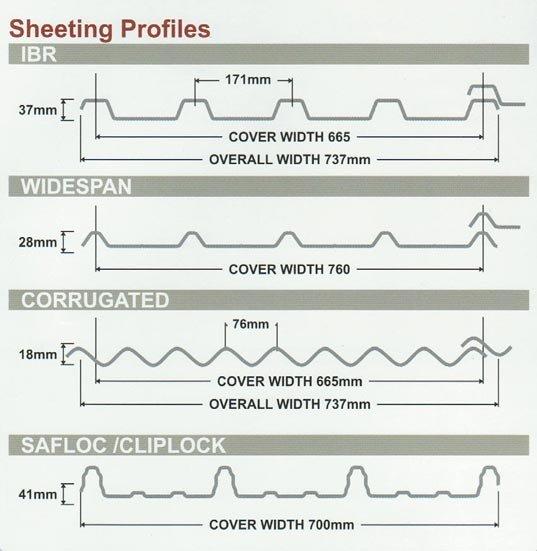

Sheeting Profiles

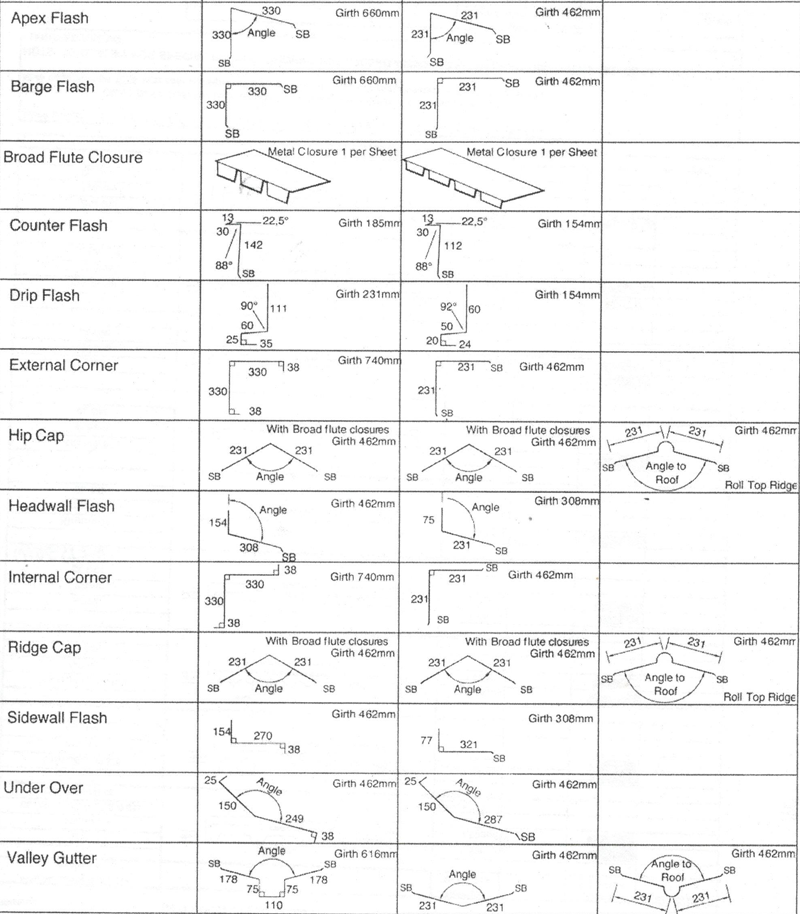

Flashing
Single spanning distance for lipped channel (end to end)
| Dimension and thickness | engineer specs | |
| 75x50x20x2mm | 3m | |
| 100x50x20x2mm | 3.7m | |
| 125x50x20x2mm | 4.2m | |
| 150x50x20x2mm | 5.1m | |
| 150x75x20x2mm | 5.6m | |
| 175x75x20x2mm | 6.3m | |
| 200x75x20x2mm | 6.9m | |
| 250x75x20x2mm | 8.6m |
Call us for actual spans 031 271 3076
Above lipped channels available in mild steel, galvanized and powder coated
For further technical information, call 081 039 9023
Square poles [uprights]
Available in the following dimensions
Despriction thickness lengths
50x50 1.6mm 3m 6m 7.2m
60x60 1.6mm 3m 6m
76x76 1.6mm 3m 3.6m 4.2m 6m 7.2m
100x100 2&3mm 6m
Shadeports
1. Cloths all sizes (to order)
2. 48x2mm rounds
3. Components
4. Cantilever pole 152x3x4.5m
All hot dipped galvanised
2. 48x2mm rounds
3. Components
4. Cantilever pole 152x3x4.5m
All hot dipped galvanised
Mild steel tubing
1.2mm/1.4mm/1.5mm/1.6mm
5.85m/6m
1. 19x19
2. 25x25
3. 32x32
4. 38x38
5. 50x50
6. 76x76
5.85m/6m
1. 19x19
2. 25x25
3. 32x32
4. 38x38
5. 50x50
6. 76x76
Sundries
1. Screws
2. Nut amd bolts
3. Silicone and gun
4. Cutting disk
5. Steel and concrete bits
6. Rawl bolts
7. Raintite kits
8. Rivets and gun
9. Safety wear (Goggles,helmet,gloves etc)
10. Power tools
And much more
2. Nut amd bolts
3. Silicone and gun
4. Cutting disk
5. Steel and concrete bits
6. Rawl bolts
7. Raintite kits
8. Rivets and gun
9. Safety wear (Goggles,helmet,gloves etc)
10. Power tools
And much more
